TS170 Series Rotor

TS170 Series Rotor

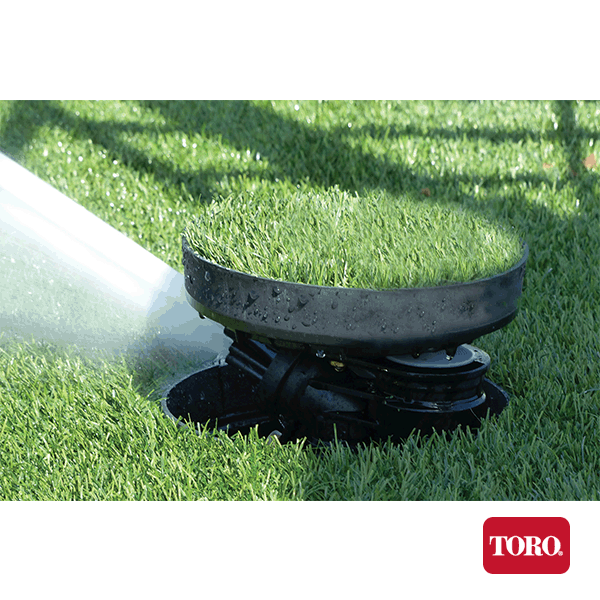

The piston-driven Toro TS170 Series long radius rotor is the irrigation solution of choice for the cooling and washing down of large synthetic turf fields. Capable of achieving a throw of 177 feet, the TS170 Series Rotor can be installed along the outer p

Why choose light rain?

High return on investment: The best balance of drip irrigation performance and budget, without worrying about product stability and uniformity of crop growth.

Uniform flow: The pressure compensation dropper provides the correct amount of water and nutrition for each plant in long-distance pipeline transportation and high and low undulating terrain.

Good blocking resistance: The continuous self-cleaning mechanism flushes out debris and will not block the entire crop life cycle.

The laying of branch pipes is long, and the cost is reduced: using fewer main pipes, it can irrigate branch pipes up to 500 meters long, reducing installation costs

Parameter

  • Operational
  • • Radius Capability: 111-177 feet
  • • Arc Adjustment: Part circle (30°-330°) / Full circle (360°)
  • • Output Flow: 113-303 gallons per minute
  • • Recommended Operating Pressure: 100 psi
  • • Maximum Operating Pressure: 145 psi
  • • Minimum Operating Pressure: 60 psi
  • • Nozzle Options: 16, 20 and 24 mm
  • • Nozzle Trajectory: 25°
  • • Speed of Rotation (180° arc): 50-120 seconds, adjustable
  • (pressure dependent)
  • • Valve Type: Electric Valve-in-Head (VIH) 24V ac actuated solenoid
  • Dimensions
  • • Inlet Size: 2” NPT Female
  • • Overall Dimensions: 20.8” H x 13.75” W (Block Style model),
  • 26.8” H x 13.75” W (VIH model)
  • • Cover Diameter: 10.1”
  • • Pop-up Height: 4.7”
  • • Overall Weight: 23 pounds (Block Style model), 26 pounds
  • (VIH model)
  • Warranty
  • • Five years
  • TS170 Series Rotor

    Detail

    TS170 Series Rotor - Detail
